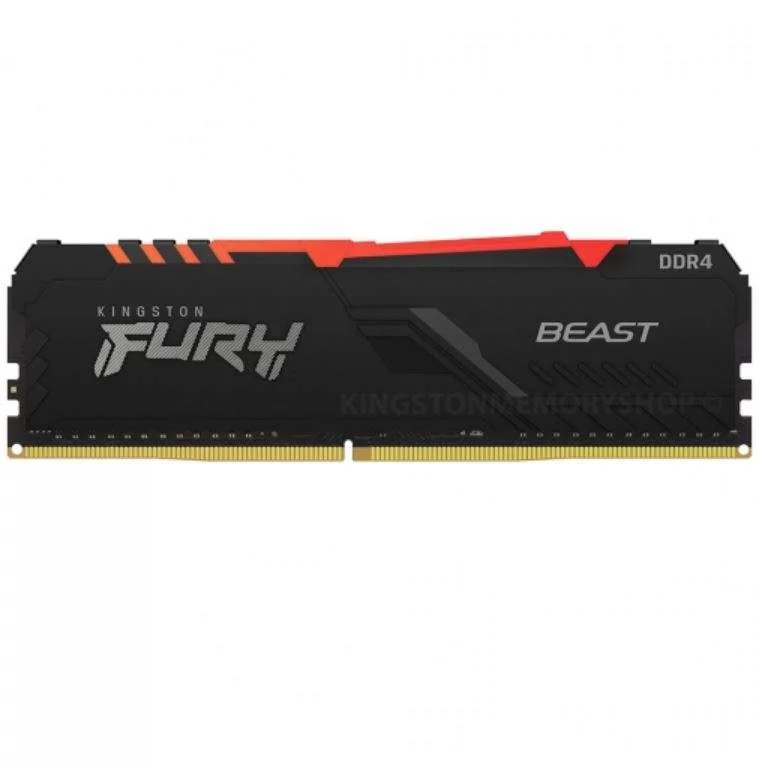

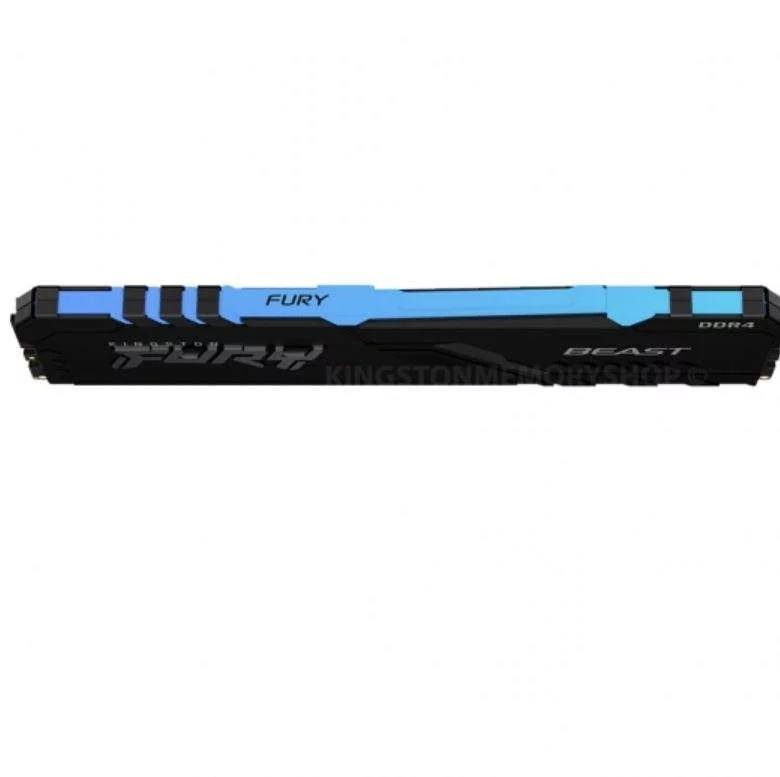

Kingston FURY KF436C18BBA/16 is a 2G x 64-bit (16GB)

DDR4-3600 CL18 SDRAM (Synchronous DRAM) 1Rx8, memory

module, based on eight 2G x 8-bit FBGA components per module.

Each module kit supports Intel® Extreme Memory Profiles (Intel®

XMP) 2.0. Each module has been tested to run at DDR4-3600 at a

low latency timing of 18-22-22 at 1.35V. The SPDs are programmed

to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V.

electrical and mechanical specifications are as follows:

• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.2V to 3.6V
• On-Die termination (ODT)
• 16 internal banks; 4 groups of 4 banks each
• Bi-Directional Differential Data Strobe
• 8 bit pre-fetch
• Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
• Height 1.62” (41.2mm), w/heatsink
