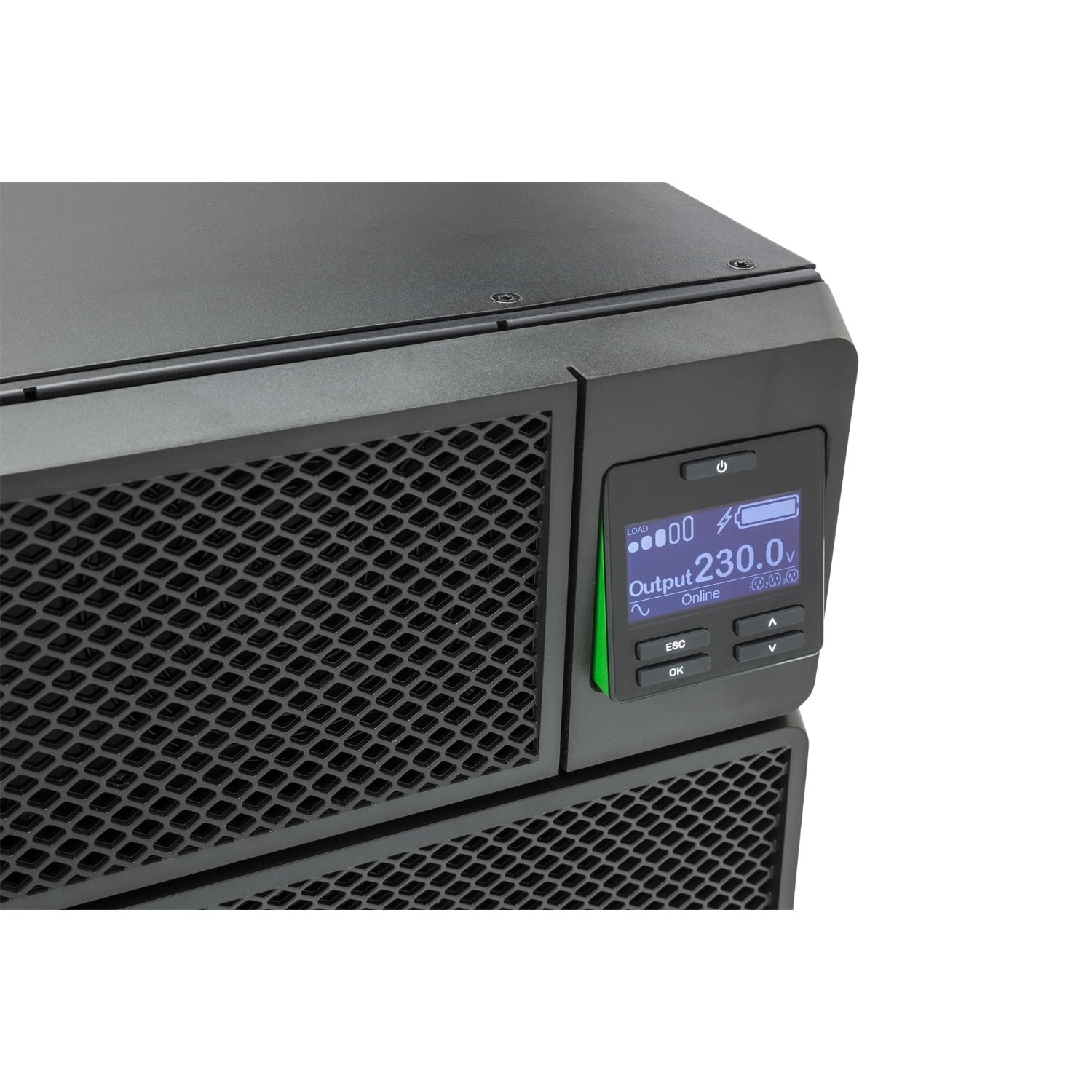

This product is part of the Smart-UPS On-Line range that provides high density, true double-conversion on-line power protection. This 5000VA/4500W On-line pure sine wave UPS provides scalable runtime while minimizing maintenance. The 3U rack/tower convertible SRT has an Embedded Network Management Card for network-based UPS monitoring and management. The UPS has an additional SmartSlot for connectivity and PowerChute Network Shutdown support for graceful unattended shutdown. It comes with hard wire 3-wire input, 6x IEC 320 C13 and 4x IEC 60320 C19 outlets, and 2x IEC jumper cables. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. Its dimensions are 719mm (depth) x 130mm (height) x 432mm (width) and weighs 54.43kg. Ideal for servers, voice/data networks, medical labs, and light industrial applications. It conforms to CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, and VDE. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
APC Smart UPS SRT 5000VA 5KVA RM 230V, 4500W| SRT5KRMXLI
Weight | 67 kg |
---|---|
Rated power | 5000VA |
Run time for load W information_stroke Min-max: 450-4500 W | 3min 59s |
---|---|
Max. Capacity Used information_stroke | 100 % |
Main Input Voltage | 230 V |
Other Input Voltage | 220 V 240 V |
Main Output Voltage | 230 V |
Other Output Voltage | 220 V 240 V |
rated power in W | 4500 W |
Rated power in VA | 5000 VA |
output connection type | 6 IEC 60320 C13 2 IEC Jumpers 4 IEC 60320 C19 |
Number of rack unit | 3U |
Battery type | Lead-acid battery |
Provided equipment | Documentation CD Installation guide Rack mounting hardware Rack mounting brackets Rack mounting support rails Temperature probe Warranty card Web/SNMP management card |
Run Time | View Runtime Graph action_new_window |
---|---|
Efficiency | View Efficiency Graph action_new_window |
Number of battery filled slots | 0 |
Battery recharge time | 1.5 h |
Number of battery replacement quantity | 1 |
Battery voltage | 192 V |
Battery charger power | 560 W rated |
Battery power in VAH | 845 VAh runtime |
Battery life | 3…5 year(s) |
Replacement battery | APCRBC140 action_new_window action_new_window action_new_window action_new_window |
Battery option | SRT192RMBP 1 2535 VAh SRT192RMBP 2 4225 VAh SRT192RMBP 3 5915 VAh SRT192RMBP 4 7605 VAh SRT192RMBP 5 9295 VAh SRT192RMBP 6 10985 VAh SRT192RMBP 8 14365 VAh SRT192RMBP 10 17745 VAh |
Extended runtime | 1 |
product web sub-family | High density |
---|---|
Number of power module free slots | 0 |
Number of power module filled slots | 0 |
Redundant | No |
Colour | Black |
---|---|
Height | 13 cm |
Width | 43.2 cm |
Depth | 71.94 cm |
Net weight | 54.43 kg |
Mounting location | Front |
Mounting preference | No preference |
Mounting mode | Rack-mounted |
Two post mountable | 0 |
USB compatible | Yes |
Mounting position | Horizontal |
Network frequency | 40…70 Hz auto-sensing |
---|---|
Number of input connectors | 1 hard wire 3-wire (1P + N + E) |
Input voltage limits | 100…275 V adjustable (half load) |
Maximum configurable power in W | 4500 W |
---|---|
Harmonic distortion | Less than 2 % |
Output frequency | 50/60 Hz +/- 3 Hz sync to mains |
Crest factor | 3 : 1 |
UPS type | Double conversion online |
Wave type | Sine wave |
bypass type | Internal bypass (automatic and manual) |
Maximum configurable power in VA | 5000 VA |
Product certifications | CE EAC IRAM RCM VDE |
---|---|
Marking | CE Mark |
Standards | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018 |
Ambient air temperature for operation | 0…40 °C |
---|---|
Relative humidity | 0…95 % non-condensing |
Operating altitude | 0…10000 ft |
Ambient air temperature for storage | -15…45 °C |
Storage Relative Humidity | 0…95 % non-condensing |
Storage altitude | 0.00…15240.00 m |
Acoustic level | 55 dBA |
heat dissipation | 931 Btu/h |
IP degree of protection | IP20 |
Free slots | 1 |
---|---|
Preinstalled device | Network management card 3 with environmental monitoring |
Alarm | Audible and visible alarms : prioritized by severity |
Emergency power off | Yes |
Surge energy rate | 480 J |
---|
Unit Type of Package 1 | PCE |
---|---|
Number of Units in Package 1 | 1 |
Package 1 Height | 33 cm |
Package 1 Width | 61 cm |
Package 1 Length | 96 cm |
Package 1 Weight | 66.86 kg |
Warranty | 3 years repair or replace (excluding battery) and 2 years for battery |
---|
