APC Easy UPS 3S 15kVA 400V 3 phases,15kW Rated power 3:3 UPS, 2 internal 7Ah modular battery strings, expandable to 3 | E3SUPS15KHB2

APC Easy UPS 3S 15kVA 400V 3 phases,15kW Rated power 3:3 UPS, 2 internal 7Ah modular battery strings, expandable to 3 | E3SUPS15KHB2


23,199.00 AED

Estimated delivery on 20 - 21 June, 2025

———

1 year Warranty

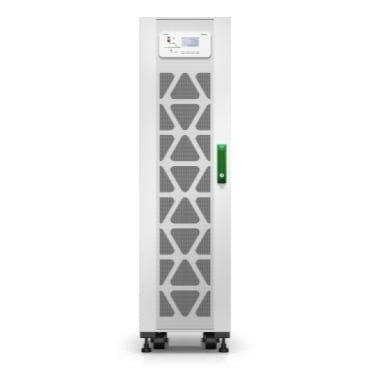

Easy UPS 3S 15kVA 400V 3 phases,15kW Rated power 3:3 UPS, 2 internal 7Ah modular battery strings, expandable to 3 | E3SUPS15KHB2
Easy UPS 3S is easy to install and start up
Parallel up to 4 UPSs for capacity or redundancy
Extended runtime options available
EcoStruxure IT: Enables resilient, secure, and sustainable IT environments
Environmental performance

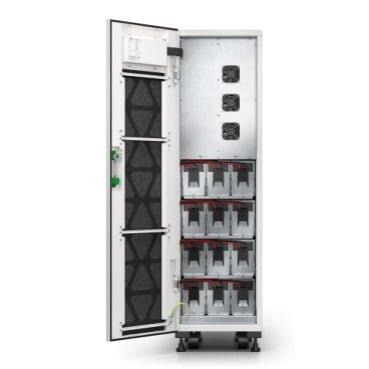

Easy-to-install, easy-to-operate, easy-to-maintain, and easy-to-service 15 kVA, 400V 3-phase UPS. With advanced product features, competitive specifications, and robust electrical design, the Easy UPS 3S UPS makes business continuity easy for small and medium data centers and electrical rooms. Includes dust filter and conformance-coated boards for harsh environments, and 2 internal 7Ah modular battery strings, expandable to 3 strings for extended runtime.
Category:
Weight481 kg
Rated power

20kva

Main Input Voltage400 V 3 phases
Other Input Voltage380 V
415 V
Main Output Voltage400 V 3 phases
Other Output Voltage380 V
415 V
Rated power in W15 kW
Rated power in VA15 kVA
Provided equipmentDust filter
Installation guide
Batteries & Runtime
EfficiencyView Efficiency Graph

action_new_window
Battery typeVRLA
Battery voltage240 V
maximum short-circuit current10 kA
Number of battery filled slots2
Number of battery free slots1
Physical
ColourWhite (RAL 9003)
height140 cm
Width38 cm
Depth92.8 cm
Net weight436 kg
USB compatibleYes
Input
Maximum input current28 A
Input harmonic distortionLess than 3 % for full load
Load power factor0.9 leading to 0.9 lagging
Input Power Factor at Full Load0.99
Input voltage limits304…477 V
Network frequency45…65 Hz
Output
Maximum configurable power in VA15 kVA
Maximum configurable power in W15 kW
Output frequency50 Hz sync to mains
60 Hz sync to mains
Harmonic distortionLess than 3 %
Output harmonic distortion< 3% linear load
Output voltage tolerance+/- 1.5 %
UPS typeDouble conversion online
Additional informationUPS weight does not include battery weight.
Conformance
product certificationsCE
EAC
RCM
Environmental
ambient air temperature for operation0…40 °C
Relative humidity0…95 % non-condensing
Operating altitude0…3333 ft
Ambient air temperature for storage-15…40 °C
Storage Relative Humidity0…95 % non-condensing
Storage altitude0.00…15240.00 m
Acoustic level60 dBA
Heat dissipation852 W
IP degree of protectionIP20
Packing Units
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height164 cm
Package 1 Width101.4 cm
Package 1 Length56.3 cm
Package 1 Weight481 kg
