MSI PRO B760-P WIFI DDR4 , Socket 1700, INTEL B760, 4x DDR4, Maximum Memory Capacity 128GB, 1x HDMI,1x DisplayPort, 5x PCI-E x16 slot, 2x M.2, 4x SATA 6G, ATX Motherboard | 911-7D98-001

MSI PRO B760-P WIFI DDR4 , Socket 1700, INTEL B760, 4x DDR4, Maximum Memory Capacity 128GB, 1x HDMI,1x DisplayPort, 5x PCI-E x16 slot, 2x M.2, 4x SATA 6G, ATX Motherboard | 911-7D98-001

569.00 AED

Estimated delivery on 23 - 25 November, 2024

———

1 year Warranty

PRO B760-P WIFI DDR4

  • Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Supports DDR4 Memory, Dual Channel DDR4 5333+MHz (OC)
  • Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
  • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
  • Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
  • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

PRO B760M-G DDR4 is designed with tons of flexible tools with DDR4 memory version.

Msi Motherboard Pro Series Logo
BUSINESS ELEGANCE

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

EXCLUSIVE FEATURES

Core Boost

M.2 Shield Frozr

Audio Boost

Memory Boost

Lightning Gen 4

LIGHTNING GEN 4 PCI-E WITH STEEL ARMOR

LIGHTNING GEN 4 PCI-E

Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.

MSI STEEL ARMOR
REINFORCED,
HEAVY SOLDERED CONNECTIONS

Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

FAST AND FUTURE-READY STORAGE

MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

MSI PRO z790-P wifi DDR4 storage overview



DDR4 MEMORY SOLUTION

With MSI Memory Boost technology and premium layout design, MSI PRO Series motherboards are ready to deliver the world-class memory performance.

MSI Pro B760M-G DDR4 LATEST DDR5 MEMORY WITH SMT SLOT

MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.

Mystic Light
Create your own colorful masterpiece with ease. Splash any color you want with just a few clicks!

EXCLUSIVE UI OF AIDA64 EXTREME

MSI motherboards provide 60 days free trial of AIDA64 Extreme – MSI edition. AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML.

Get more from a loaded BIOS designed for ease of use. Fine-tune the motherboard for gaming performance, efficiency, or overclocking world records!

EZ-MODE
ADVANCED MODE
MSI EZ Mode Pro Series

  • XMP

    Choose from a preset XMP profile and automatically overclock compatible DDR memory.

  • VMD (VOLUME MANAGEMENT DEVICE)

    Enable direct control and management of NVMe SSDs from the PCIe bus without additional hardware adaptors.

  • M-FLASH

    Conveniently flash or upgrade the BIOS in a few minutes from the CMOS Setup Utility.

  • HARDWARE MONITOR

    Get immediate access to your critical hardware information in real-time including temperature, memory capacity, clock speed, and voltage.

  • MEMORY TRY IT

    Get extreme speed out of your system memory and get more performance.

  • SEARCH & FAVORITES

    A permanent search & favorite option in the top right corner moves you through the BIOS menus quickly.

SYSTEM SAFETY

All MSI PRO series motherboards have SECURITY function in BIOS to protect every private files for no matter business or daily use.

SECURE BOOT

Secure boot is a security standard to make sure that a device boots using only software that is trusted. When the PC starts, the firmware checks the signature of each piece of boot software, including UEFI firmware drivers, EFI applications, and the operating system. The PC boots while the signatures are valid.

System Safety

Resizable BAR (Re-Size BAR) is an advanced PCI Express feature that enables the CPU to access the entire GPU frame buffer at once and improve performance.

AUDIO BOOST

  • DE-POP PROTECTION
Msi X670 Audio Boost 3Msi Z790 high quality audio capacitorsMsi x670 audio high quality audio jacksMsi x670 audio isolated audio signalMsi x690 Audio Boost with AMP

EXTEND YOUR RGB EXPERIENCE WITH EASE

Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

Msi X670 motherboard with a-rainbow v2
Supports 5V Addressable RGB devices. Compatible with ARGB Gen2 / Gen1 devices.
*Gen2 device only supports 7 RGB themes

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSI’s premium network solution provides incredible data transfer speed for demanding users.

lan 2.5g wifi low-latency network with natenna

msi lan 2.5g icon
PRO B760-P WIFI DDR4

Category:
Weight1.5 kg
Dimensions35 × 7 × 25 cm
Cpu Socket Support

LGA 1700

CHIPSETINTEL B760
CPU SUPPORTSupports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700
MEMORY4x DDR4, Maximum Memory Capacity 128GB
Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 5333+ MHz
• 1DPC 2R Max speed up to 4800+ MHz
• 2DPC 1R Max speed up to 4400+ MHz
• 2DPC 2R Max speed up to 4000+ MHzSupports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
ONBOARD GRAPHICS1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT5x PCI-E x16 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)
STORAGE2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
* SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAIDSupports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen1 Type C (Front)
2x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
LANRealtek® RTL8125BG 2.5G LAN
WIRELESS / BLUETOOTHIntel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3, FIPS, FISMA* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
AUDIORealtek® ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
INTERNAL I/O1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Printer Port (JLPT)
1x Com Port (JCOM)
1x TBT connector (JTBT, supports RTD3)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen1 Type C ports
LED FEATURE4x EZ Debug LED

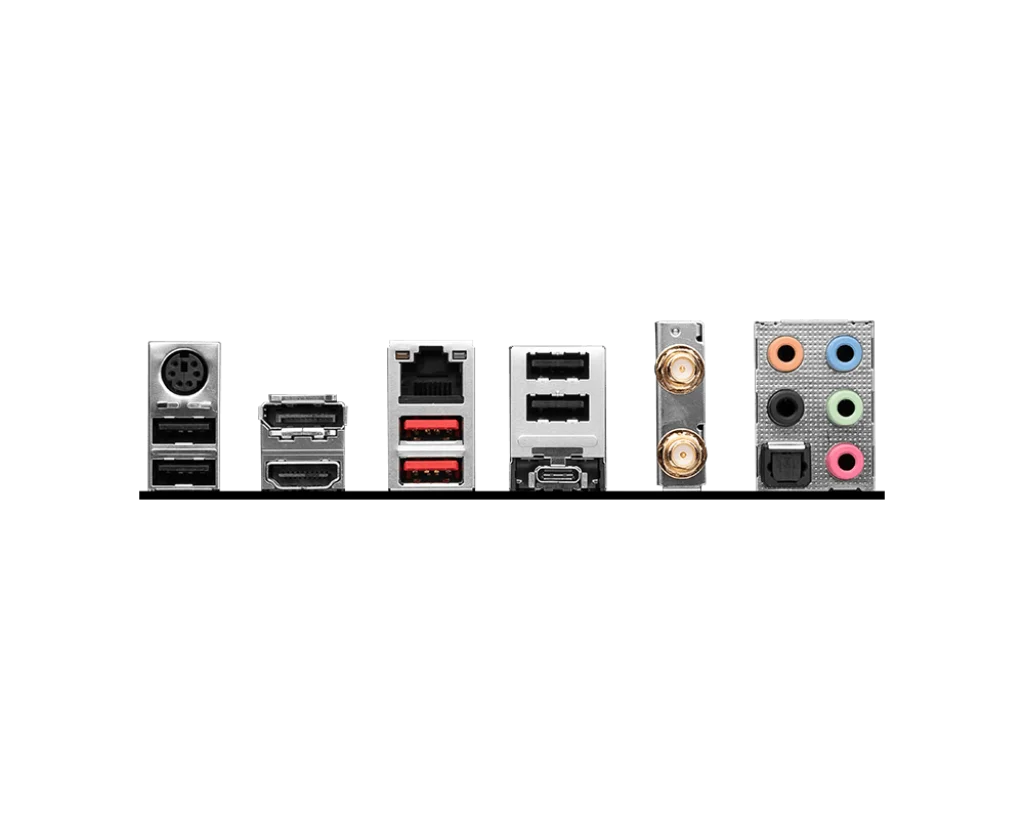

BACK PANEL PORTS

  1. Keyboard / Mouse
  2. DisplayPort
  3. 2.5G LAN
  4. USB 2.0
  5. Wi-Fi / Bluetooth
  6. Audio Connectors
  7. USB 2.0
  8. HDMI™
  9. USB 3.2 Gen 2 10Gbps (Type-A)
  10. USB 3.2 Gen 2 10Gbps (Type-C)
  11. S/PDIF-OUT
OPERATING SYSTEMSupport for Windows® 11 64-bit, Windows® 10 64-bit
PCB DIMENSIONATX
243.84mmx304.8mm
